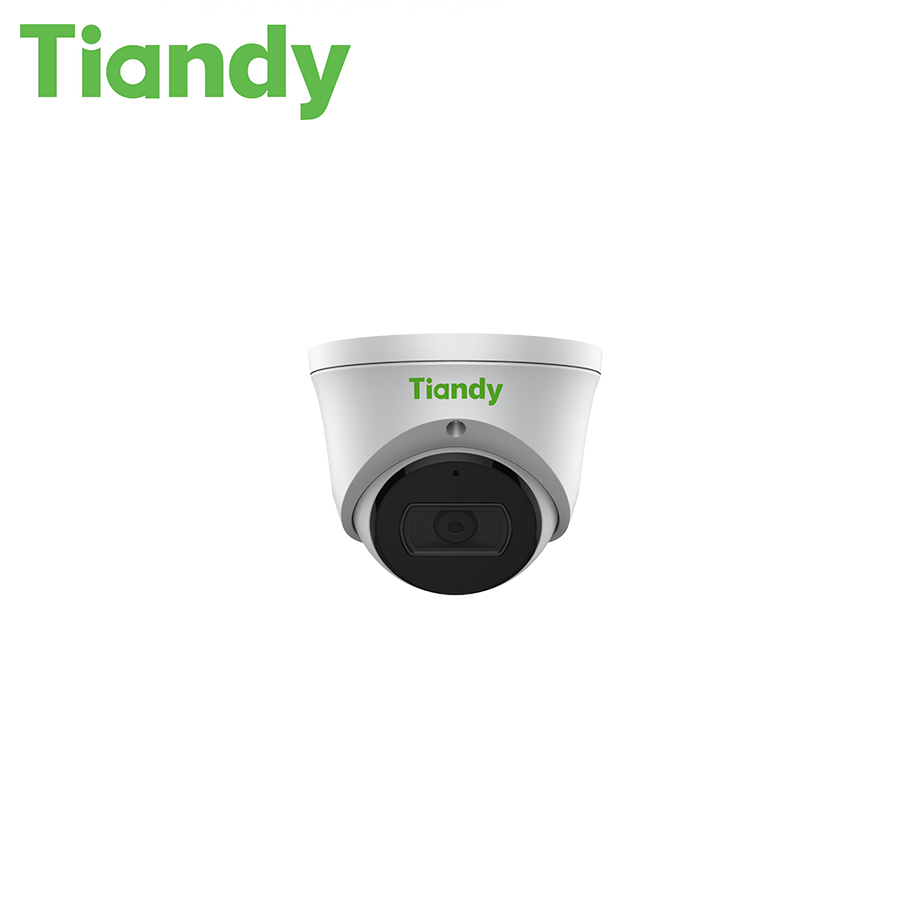

HS-C352XN
2MPCAMERA NETWORK DOME ỐP TRẦN HỒNG NGOẠI
CAMERA NETWORK DOME ỐP TRẦN HỒNG NGOẠI
Camera |
|
Image Sensor |
1/2.9" CMOS |
Signal System |
PAL/NTSC |
Min. Illumination |
Color: 0.02Lux@ (F2.0, ACG ON), B/W: 0Lux with IR |
Shutter Time |
1s to 1/100,000s |
Day & Night |
Dual IR Cut Filter with Auto Switch |
Wide Dynamic Range |
Digital WDR |
Angle Adjustment |
pan 0~340°, tilt 0~75°, roate 0~360° |
Lens |
|
Lens Type |
Fixed |
Focus |
2.8mm |
Lens Mount |
M12 |
Aperture |
F2.0, Fixed |
FOV |
Horizontal field of view: 97.4° |
Illuminator |
|
IR LEDs |
2 |
IR Range |
Up to 30m |
Wavelength |
850nm |
White LEDs/Warmlights |
N/A |
Compression Standard |
|
Video Compression |
S+265/H.265/H.264 |
Video Bit Rate |
32Kbps~6Mbps |
Audio Compression |
G.711/G.711U/ADPCM |
Audio Bit Rate |
8K~48Kbps |
Image |
|
Max. Resolution |
1920x1080 |
Main Stream |
PAL: 25fps (1920×1080, 1280×720, 704×576, 640×480) |
NTSC: 30fps (1920×1080,1280×720, 704×480, 640×480) |
|
Sub Stream |
PAL: 25fps (704×576, 704×288, 640×360, 352×288) |
NTSC: 30fps (704×480, 704×240, 640×360, 352×240) |
|
Third Stream |
N/A |
Image Setting |
Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
Image Enhancement |
BLC/3D DNR/HLC |
ROI |
N/A |
OSD |
16×16, 32×32, 48×48, adaptable size, Letters Such as Week, Date, Time, Total 3 Regions |
Picture Overlay |
N/A |
Privacy Mask |
Yes, 4 regions |
Smart Defog |
Yes |
Feature |
|
Alarm Trigger |
Motion Detection, Mask Alarm, IP Address Conflict |
Video Analytics |
Tripwire, Perimeter |
Early Warning(EW) |
N/A |
Network |
|
ANR |
Yes, auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR) |
Protocols |
TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet |
System Compatibility |
ONVIF (PROFILE S/T/G), SDK, P2P(Mutually exclusive with Profile G) |
Remote Connection |
≤7 |
Client |
Easy7, EasyLive |
Web Version |
Web5 |
Interface |
|
Communication Interface |
1 RJ45 10M/ 100M self adaptive Ethernet port |
Audio I/O |
Mic in |
Alarm I/O |
N/A |
Reset Button |
Yes |
On-board storage |
Built-in MicroSD card slot, up to 512 GB |
General |
|
Firmware Version |
- |
Web Client Language |
15 languages English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebraism, Arabic, Vietnamese |
Operating Conditions |
-35℃~65℃, 0~95% RH |
Power Supply |
DC 12V±25%, PoE (802.3af) |
Power Consumption |
MAX: 6W (12V) MAX: 7W (PoE) |
Protection |
IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017 |
Heater |
N/A |
Dimensions |
Φ116.6×83.7mm (Φ4.59×3.30inch) |
Weight |
Metal+Plastic: 0.3Kg (0.66lb) Metal: 0.45Kg (0.99lb) |
