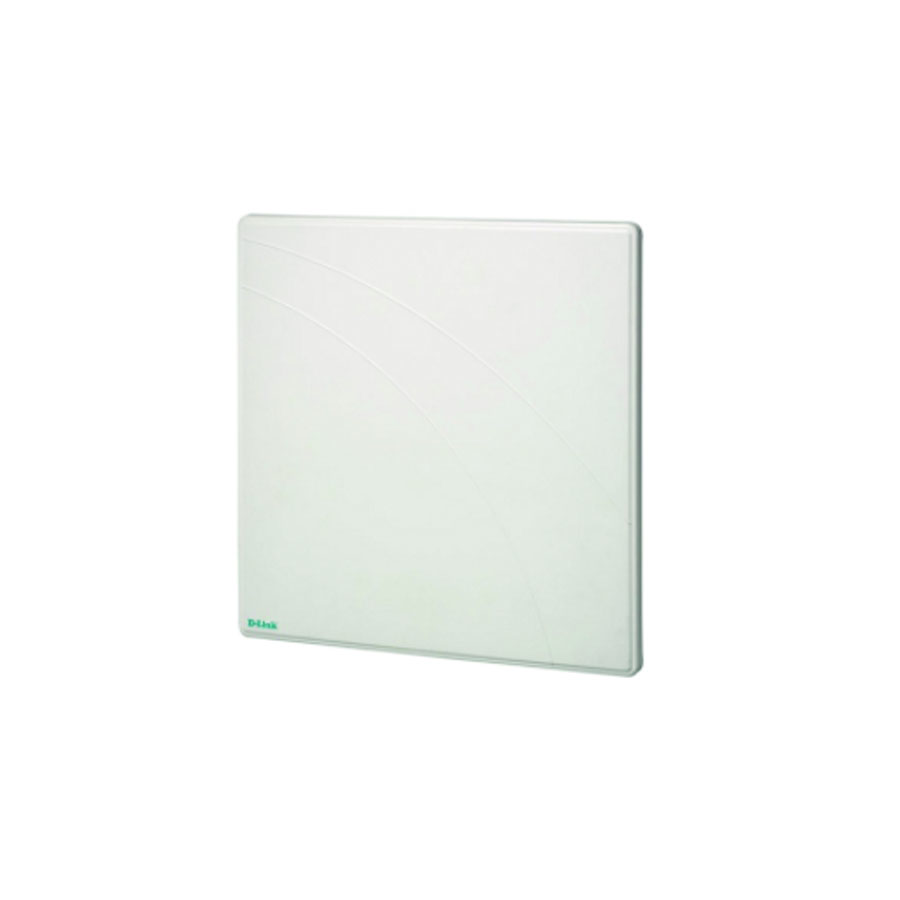

D-Link ANT24-1800

 Wireless 2.4GHz Outdoor 18 dBi Directional Panel Antenna D-Link ANT24-1800

D-Link, an industry leader in networking, introduces the ANT24-1800 18 dBi Directional Panel Antenna designed to provide extended coverage for an existing 802.11b/g wireless network. The directional design of the ANT24-1800 offers dramatically increased wireless signal coverage in a specific direction allowing for improved data throughput at further distances.

Specifications

- Frequency band: 2400-2500 MHz.

- Antenna gain: 18dBi.

- VSWR: 1.5 max.

- Polarization: Linear, Vertical

- HPBW/ Horizontal: 15°

- HPBW/ Vertical: 15°

- Impedance: 15Ω

- Theoretical Max Distance: 5km.

- Dimensions: 360 x 360 x 16 mm.

- Weight: 1.6kg.
