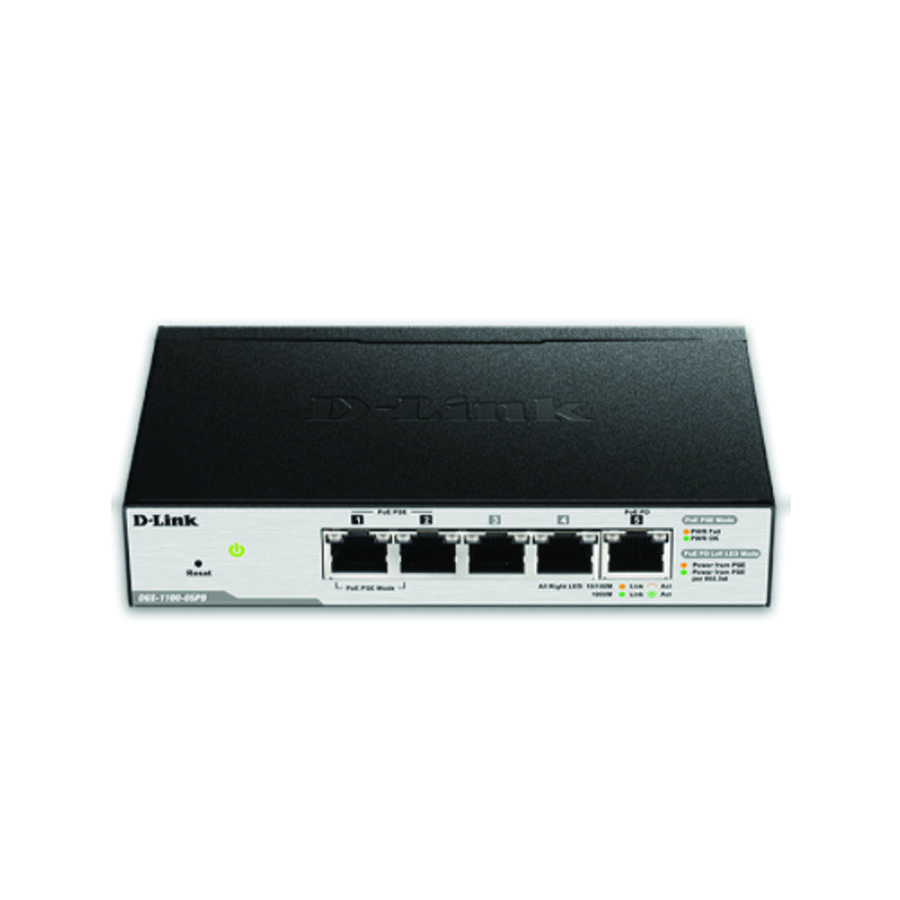

D-Link DGS-1100-05PD

 5-Port Gigabit Smart Managed Desktop Switch, PoE Powered, PoE Pass-through D-Link DGS-1100-05PD

-5-port UTP 802.3af PoE 10/100/1000Mbps (Port 1-2 Up to 15.4W per port, Port 5 : PD Input 802.3af PoE or 802.3at PoE+, Power Budget (PoE Passthrough): Up to 18W with 802.3at PD input / 8W with 802.3af PD input, No Power Adapter (Powered via PoE PD Port).

D-Link Green/Power Saving Performance

-Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE), these switches consume less energy by cutting down on power consumption when port utilization is low.

-By deploying EEE devices, users can cut operating costs and reduce necessary cooling equipment, helping small and medium-sized businesses stay within their budgets.

-The DGS-1100-05PD switches also feature D-Link Green Technology that helps save energy automatically.

-The switches monitor the link status of every port and reduce power consumption on the interface when there is no link or no network traffic detected.

Easy to deployment

-The DGS-1100-05PD switches support an intuitive client-based utility (D-Link Network Assistant Utility) and a web-based management interface.

-The client-based utility discovers all D-Link Smart Switches within the same Layer 2 network segment, making initial setup quick and easy.

-This allows extensive switch configuration and basic administration of discovered devices, including password changes and firmware upgrades.

-The web-based management interface provides a user-friendly way for network administrators to manage the switch down to the port level.

-The interface can be accessed from a web browser, allowing the switch to be controlled from any networkconnected PC.

Surveillance VLAN and Bandwidth Control

-The DGS-1100-05PD switches support Surveillance VLAN for IP surveillance deployments.

-This gives video traffic a dedicated VLAN and higher priority through the switch, separating surveillance traffic from the rest of the network.

-This also ensures security, and guarantees the quality of the video traffic, sparing businesses the added cost of dedicated surveillance networking hardware.

-Bandwidth Control can reserve bandwidth on a per port basis for important functions that require larger bandwidth or might have high priority.

PoE Pass-through

-The DGS-1100-05PD is a unique 5-port switch which must be powered by an upstream 802.3af or 802.3at compliant PoE switch/injector through its port 5.

-The switch also has the ability to propagate PoE power further downstream to PDs connected to its ports 1 and 2.

-The amount of power available to PDs is dependent on the PoE source (802.3af or 802.3at) and the PD’s PoE Classification.

Advanced Features

-The DGS-1100-05PD Series switches are equipped with advanced security features such as Static MAC, Storm Control, and IGMP Snooping.

-Static MAC allows users to create a MAC whitelist for specific ports, helping administrators limit network access to authorized devices only.

-Storm Control monitors broadcast, multicast, or unknown unicast traffic and will start blocking or discarding packets which could flood the network when the defined threshold is exceeded.

-IGMP Snooping is able to reduce the loading of L3 multicast routers and save bandwidth in network throughput.

Easy Troubleshooting

-The DGS-1100-05PD Series switches feature Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.

-Loopback Detection is used to detect loops created by a specific port and automatically shuts down the affected port.

-Cable Diagnostics helps network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
