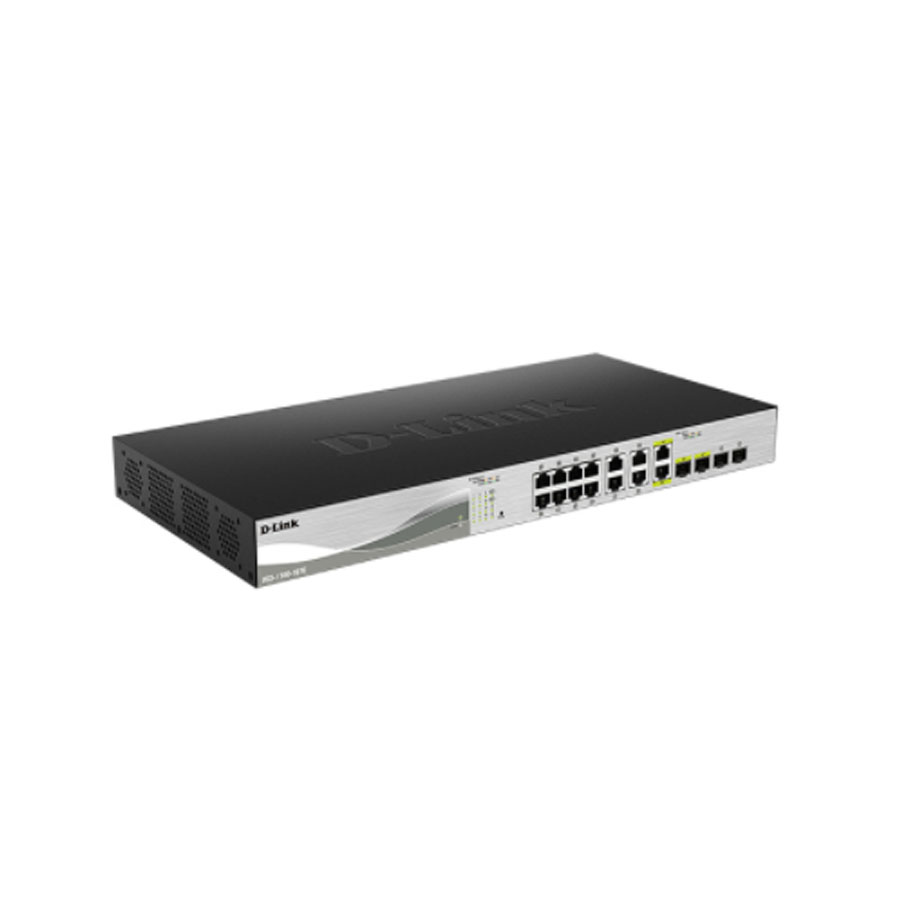

D-Link DXS-1100-16TC

 16-Port EasySmart 10-Gigabit Ethernet Smart Managed Switch D-Link DXS-1100-16TC

-12-port UTP 10GBASE-T, 2-port 10G SFP+, 2-port UTP 10GBASE-T/10G SFP+ Combo (EU 2 round pin+ UK 3-pin Power Cord, H/W: A1, Rackmountable).

-The DXS-1100-16TC switch is an EasySmart Layer 2 10 Gb Ethernet switch which provides an entry-level solution for Small and Medium Businesses wishing to deploy 10 Gb Ethernet.

-It is ideal for server farms or as a network aggregation device and provides a cost-effective but feature-rich solution to 10 Gb Ethernet requirements.

Energy Saving

-The DXS-1100-16TC incorporates D-Link Green technology for increased energy efficiency.

-Smart fans and temperature sensors ensure that the fans are running at the optimum speed to cool the system.

-If the environment temperature is suitable and the switch is at low utilization, the smart fans can reduce their speed, resulting in lower power consumption and noise output.

-The Link Status feature can reduce power utilization by powering-down inactive ports and putting them into sleep mode.

-The DXS-1100-16TC also takes its Green credentials one step further by incorporating a chipset with advanced silicon technology for reduced power utilization.

Easy to Deployment

-The DXS-1100-16TC supports an intuitive client-based D-Link Network Assistant Utility and a web-based management interface.

-The client-based utility allows customers to discover all switches in the D-Link Smart Switch family within the same L2 network segment.

-With this utility, users do not need to change the IP address of their PC, and this also makes initial setup of the Smart Switches quick and easy.

-Switches within the same L2 network segment that are connected to the user’s PC are displayed on-screen for instant access.

-This allows for extensive switch configuration and basic setup of discovered devices, including password changes and firmware upgrades.

-The graphic web-based management interface provides a user-friendly interface that enables network administrators to remotely control their network down to the port level.

Auto Surveillance VLAN and Bandwidth Control

-The DXS-1100-16TC supports Auto Surveillance VLAN (ASV), and Auto Voice VLAN, which are best suited for Voice over IP (VoIP) and video surveillance deployments.

-Auto Surveillance VLAN is a new, industry-leading technology that the DXS-1100-16TC Gigabit Ethernet Smart Switch provides.

-This technology consolidates data and surveillance video transmission through a single unit, thus sparing businesses the expense of dedicated hardware and facilities.

-ASV also ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data.

-The Auto Voice VLAN technology enhances VoIP functionality by automatically placing voice traffic from an IP phone into an assigned VLAN.

-With higher priority and individual VLAN, these features guarantee the quality and security of VoIP traffic across the network. In addition, Bandwidth Control can reserve bandwidth on a per port basis for important functions that require larger bandwidth or might have high priority.

Advanced Features

-The DXS-1100-16TC is equipped with advanced security features such as Static MAC, Storm Control, and IGMP Snooping.

-Static MAC allows users to create a MAC whitelist for specific ports, helping administrators limit network access to authorized devices only.

-Storm Control monitors broadcast, multicast, or unknown unicast traffic and will start blocking or discarding packets which could flood the network when the defined threshold is exceeded.

-IGMP Snooping is able to reduce the loading of L3 multicast routers and save bandwidth in network throughput.

Easy Troubleshooting

-The DXS-1100-16TC features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.

-Loopback Detection is used to detect loops created by a specific port and automatically shuts down the affected port.

-Cable Diagnostics help network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
