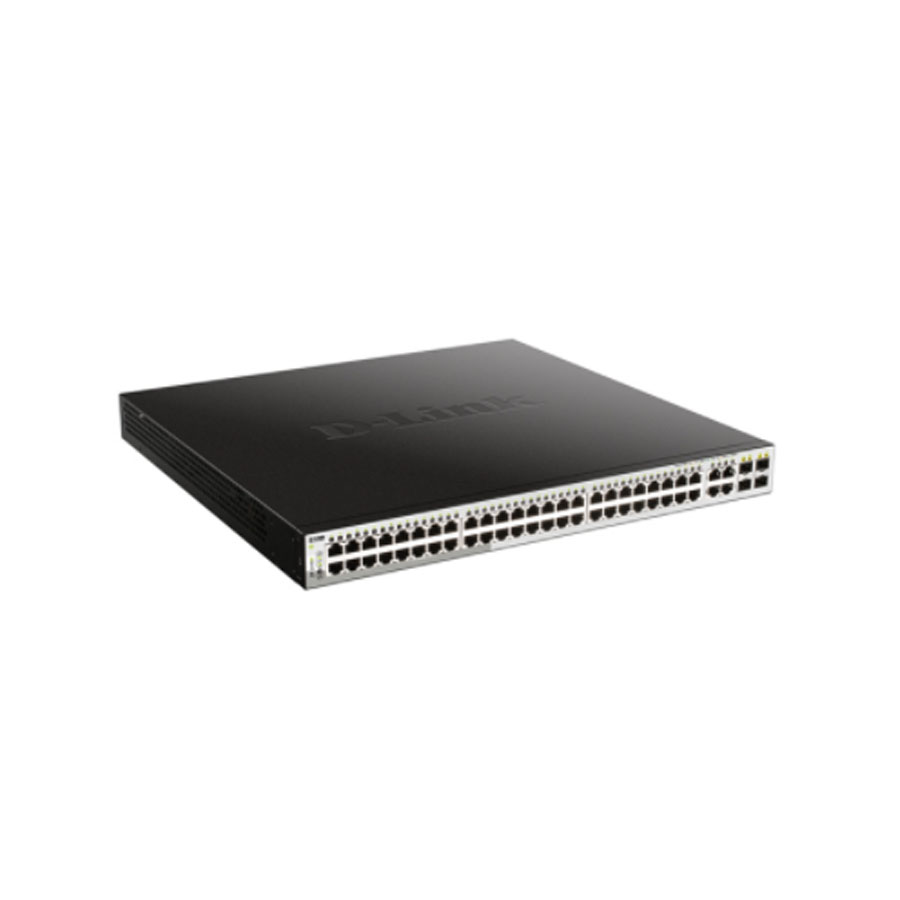

D-Link DGS-1210-52P

 52-Port Web Smart Gigabit Managed PoE Switch D-Link DGS-1210-52P

-48 x 10/100/1000 PoE ports + 4 x Gigabit RJ45/SFP COMBO ports.

-Advanced L2 switching and security features.

-L2+ Static Routing.

-Optional “standard mode” or “surveillance mode” management user interface

-Robust 370W PoE budget.

-The D-Link DGS-1210-52P are the latest generation of switches to provide increased Power over Ethernet (PoE) output, a range of physical interface types, multiple management interfaces, and advanced Layer 2 features.

-With all of these features combined, the DGS-1210-52P provides a cost-efficient and flexible solution for expanding any business network.

PoE Support

-Five of the eight models in the DGS-1210-52P support Power-over-Ethernet capabilities, simplifying deployments with IP cameras, VoIP phones, wireless access points, and other powered devices.

-Using the switch’s management interface, an administrator can control various PoE functions, such as remotely rebooting cameras or access points, from anywhere on the network, including over the Internet.

-The switches also support time-based PoE – an option that allows administrators to set a time window that determines when each port’s PoE power is turned on and off.

-All PoE models support the IEEE 802.3af and 802.3at standards, and each PoE power budget varies per model.

Advanced Features

-The DGS-1210-52P comes equipped with a complete lineup of L2 features, including IGMP snooping, port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP).

-The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers.

-The DGS-1210-52P also supports advanced features such as static routing, with static routing, IP routes are manually entered into a routing table, which allows for communication between different user groups in different VLAN segments in a network. -The switch can directly handle inter VLAN routing using multiple interfaces, making the network run faster and more efficiently.

-Because the switches can manage internal routing, the network router can be assigned to handle external traffic routing only.

-Network maintenance features include loopback detection and cable diagnostics. --Loopback detection significantly speeds up troubleshooting by automatically detecting and shutting down switching loops.

-The cable diagnostics feature, designed primarily for administrators and customer service representatives, determines the cable quality and quickly discovers errors, allowing for hassle-free diagnostics and maintenance.

Automatic Configuration

The DGS-1210-52P supports Auto Voice VLAN and Surveillance Mode, which allow voice and video traffic to be automatically identified and handled differently to regular network traffic.

-Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied.

-Surveillance Mode detects compatible ONVIF cameras and places them in a surveillance VLAN, allowing a single switch to be used for voice, video, and data, removing the need for dedicated hardware and reducing maintenance costs.

-Surveillance Mode also includes its own Web UI, making surveillance features easily accessible and simplifying management of your surveillance network.

Secure Your Network

-DGS-1210-52P protects the switches against traffic flooding caused by malicious attacks.

-The DGS-1210-52P supports 802.1X port-based authentication, allowing the network to be authenticated through external RADIUS servers.

-The Access Control List (ACL) feature enhances network security and helps to protect the internal IT network.

-The DGS-1210-52P also features Address Resolution Protocol (ARP) spoofing prevention, which provides protection from attacks on the network that could allow an intruder to sniff data frames, modify traffic, or bring traffic to a halt altogether by sending fake ARP messages.

-To prevent ARP spoofing attacks, the switch uses packet control ACLs to block invalid packets that contain fake ARP messages.

-For added security, the DHCP server screening feature filters DHCP replies on unauthorized ports to prevent them from being assigned an IP address.

Versatile Management

-The DGS-1210-52P comes with the D-Link Network Assistant (DNA) utility that enables administrators to remotely control their network down to the port level.

-The D-Link Network Assistant utility furthermore allows customers to easily discover multiple D-Link Smart Managed Switches within the same L2 network segment and display them onscreen for instant access.

-With this utility, users do not need to change the IP address of their PC.

-This allows for simultaneous configuration and basic setup of all discovered devices, including password changes and firmware upgrades.

-The DGS-1210-52P also supports D-View 7.0 and Command Line Interface (CLI) through Telnet.

-D-View 7.0 is a network management system that allows for the central management of critical network characteristics such as availability, reliability, resilience, and security.
