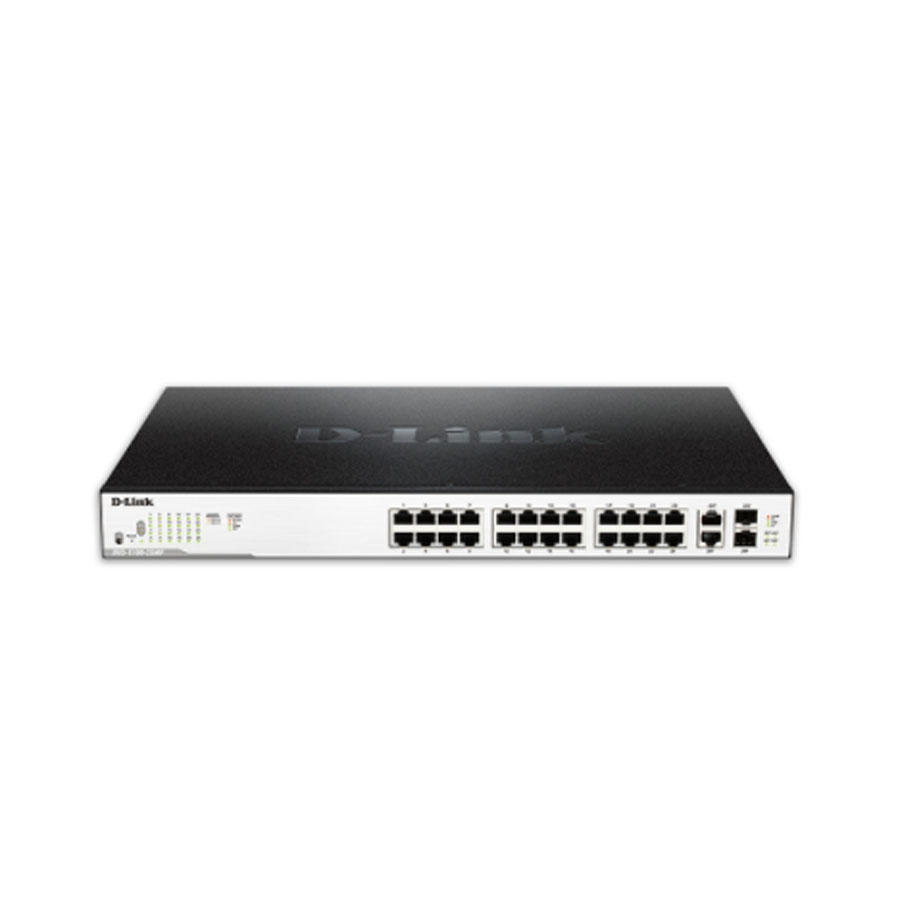

D-Link DGS-1100-26MP

 24-port Gigabit EasySmart (Max) Managed PoE Switch D-Link DGS-1100-26MP

-24-port UTP 802.3af PoE & 802.3at PoE+ 10/100/1000Mbps, 2-port UTP 10/100/1000Mbps / SFP Combo (Port 1-24 Up-to 30W, Power Budget : 370W, EU 2 round pin+ UK 3-pin Power Cord, H/W : B1, Rackmountable).

-D- Link DGS-1100-26MP provide an affordable solution for businesses of all sizes that require simple network management.

-The Link DGS-1100-26MP switches consist of 5, 8, 10,16, 24 and 26 Gigabit port models with a wide variety of functions and features.

-Four models support 802.3af/at Power over Ethernet (PoE), with a range of PoE power budgets from 64W to 370W.

-There is also a PoE-powered model that has the ability to passthrough power to one or two PoE devices downstream.

D-Link Green/Power Saving Performance

-Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE), these switches consume less energy by cutting down on power consumption when port utilization is low.

-By deploying EEE devices, users can cut operating costs and reduce necessary cooling equipment, helping small and medium-sized businesses stay within their budgets.

-The DGS-1100-26MP switches also feature D-Link Green Technology that helps save energy automatically.

-The switches monitor the link status of every port and reduce power consumption on the interface when there is no link or no network traffic detected.

Easy to deployment

-The DGS-1100-26MP switches support an intuitive client-based utility (D-Link Network Assistant Utility) and a web-based management interface.

-The client-based utility discovers all D-Link Smart Switches within the same Layer 2 network segment, making initial setup quick and easy.

-This allows extensive switch configuration and basic administration of discovered devices, including password changes and firmware upgrades.

-The web-based management interface provides a user-friendly way for network administrators to manage the switch down to the port level.

-The interface can be accessed from a web browser, allowing the switch to be controlled from any networkconnected PC.

Surveillance VLAN and Bandwidth Control

-The DGS-1100-26MP switches support Surveillance VLAN for IP surveillance deployments.

-This gives video traffic a dedicated VLAN and higher priority through the switch, separating surveillance traffic from the rest of the network.

-This also ensures security, and guarantees the quality of the video traffic, sparing businesses the added cost of dedicated surveillance networking hardware.

-Bandwidth Control can reserve bandwidth on a per port basis for important functions that require larger bandwidth or might have high priority.

Advanced Features

The DGS-1100-26MP switches are equipped with advanced security features such as Static MAC, Storm Control, and IGMP Snooping.

-Static MAC allows users to create a MAC whitelist for specific ports, helping administrators limit network access to authorized devices only.

-Storm Control monitors broadcast, multicast, or unknown unicast traffic and will start blocking or discarding packets which could flood the network when the defined threshold is exceeded.

-IGMP Snooping is able to reduce the loading of L3 multicast routers and save bandwidth in network throughput.

Easy Troubleshooting

- DGS-1100-26MP switches feature Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.

-Loopback Detection is used to detect loops created by a specific port and automatically shuts down the affected port.

-Cable Diagnostics helps network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
