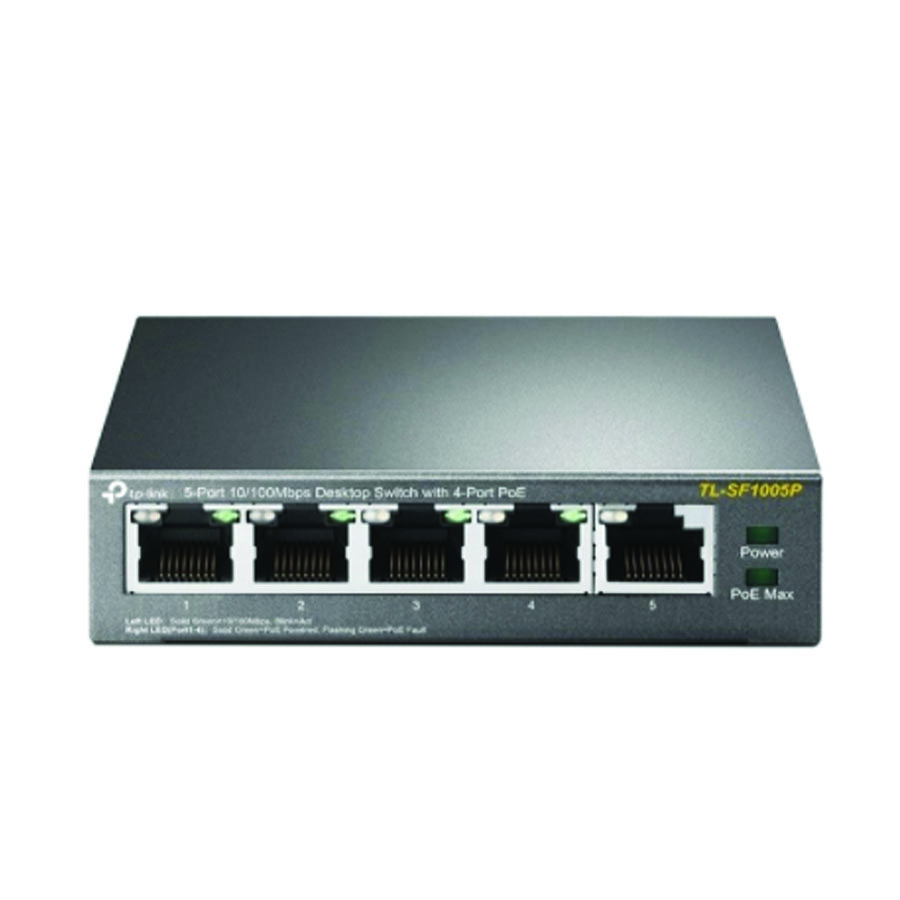

5-Port Gigabit with PoE Desktop Switch TP-LINK TL-SF1005P
- 5 10/100Mbps RJ45 ports
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- Supports PoE Power up to 15.4W for each PoE port
- Supports PoE Power up to 58W for all PoE ports
- Requires no configuration and installation
Đặc tính kỹ thuật
Model |
TL-SF1005P |
Hardware |
Interface |
5 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX |
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m) |
Fan Quantity |
Fanless |
External Power Supply |
External Power Adapter(Output: 48VDC / 1.25A) |
Consumption |
1.70 watts (max. no PD connected)
63.51 watts (max. with 58w PD connected) |
PoE Ports (RJ45) |
Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 58W |
Switching Capacity |
1Gbps |
Mac Address Table |
2K |
Dimensions |
99.8 x 98 x 25 mm |
Software |
Advanced Features |
Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode |
Transfer Method |
Store-And-Forward |
