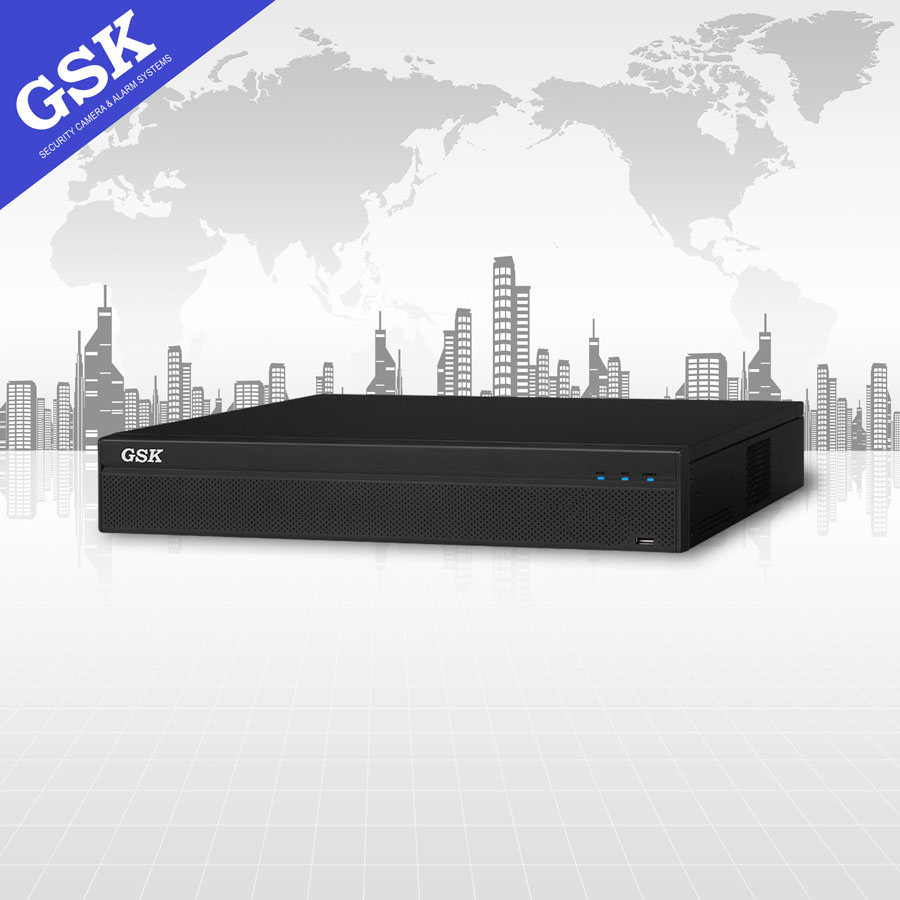

Model sản phẩm:

GSK-SP8616E-HVR

24CH IPC - 1HDD
Giá bán:
Tính năng chính:



. Chuẩn hình ảnh: H.265+/H.265/H.264+/H.264

. Kết nối đồng thời: HDCVI - AHD - TVI - ANALOG + IPC

. Độ phân giải ghi hình: 24IPC 5M

. Video Output: VGA x 1 + HDMI x 1

. Internal HDD: 1 SATA, up to 10TB

. Format HDD thông minh, Push Video

. Network Manager: Web Browser, CMS, P2P, Smart Phone, Tablet, 1 RJ-45 Port (1GB)

. Hỗ trợ hệ điều hành: Windows - MAC - IOS - Android - Windows Phone

. Hỗ trợ P2P

. Nguồn cấp: DC12V ± 10%




MUA NGAY
Camera quan sát   Giao hàng toàn quốc
Camera quan sát   Giao hàng trong vòng 5h
Camera quan sát   Đổi trả hàng trong vòng 1 tháng với bất cứ lý do
Camera quan sát   Thanh toán khi nhận hàng (COD) hoặc chuyển khoản
Camera quan sát   Tư vấn: 0903 189 128

System

Main Processor

Embedded Processor

Operating System

Embedded LINUX

Display

Interface

1 HDMI ,1 VGA

Resolution

1920×1080, 1280×1024, 1280×720, 1024×768

Multi-screen Display

1/4/8/9/16/25

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis

Alarm input

N/A

Relay Output

N/A

Playback and Backup

Playback

1/4/9/16

Search Mode

Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Storage

Internal HDD

1 SATA Port, up to 10TB capacity

eSATA

N/A

Auxiliary Interface

USB

1 USB 2.0 , 1 USB 3.0

RS232

N/A

RS485

1 Port, for PTZ Control

Third-party Support

Third-party Support

GSK, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Audio and Video

HDCVI Camera Input

16 Channel

IP Camera Input

16+8 Channel, each channel up to 5MP

Audio In/Out

1/1, RCA

Two-way Talk

Reuse audio in/Out, RCA

Recording

Compression

H.264+/H.264

Resolution

1080P, 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF

Record Rate

Main stream: 1080P(1~15fps) 720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)

Sub steram:D1/CIF/QCIF(1~15fps)

Bit Rate

1Kbps ~ 6144Kbps Per Channel

Record Mode

Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

Record Interval

1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Network

Interface

1 RJ-45 Port (1000M)

Network Function

HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search

Max. User Access

128 users

Smart Phone

IOS, Android

Interoperability

ONVIF 2.42, CGI Conformant

Electrical

Power Supply

DC12V/2A

Power Consumption

<10W (Without HDD)

Environmental

Operating Conditions

-10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH

Construction

Dimensions

Mini 1U, 325mm×255mm×55mm (12.8" x 10" x 2.2")

Net Weight

1.5kg (3.3 lb) (without HDD)
