PHARAO-II 24 (AC)

Controller

Giá bán: Liên hệ

Tính năng chính:

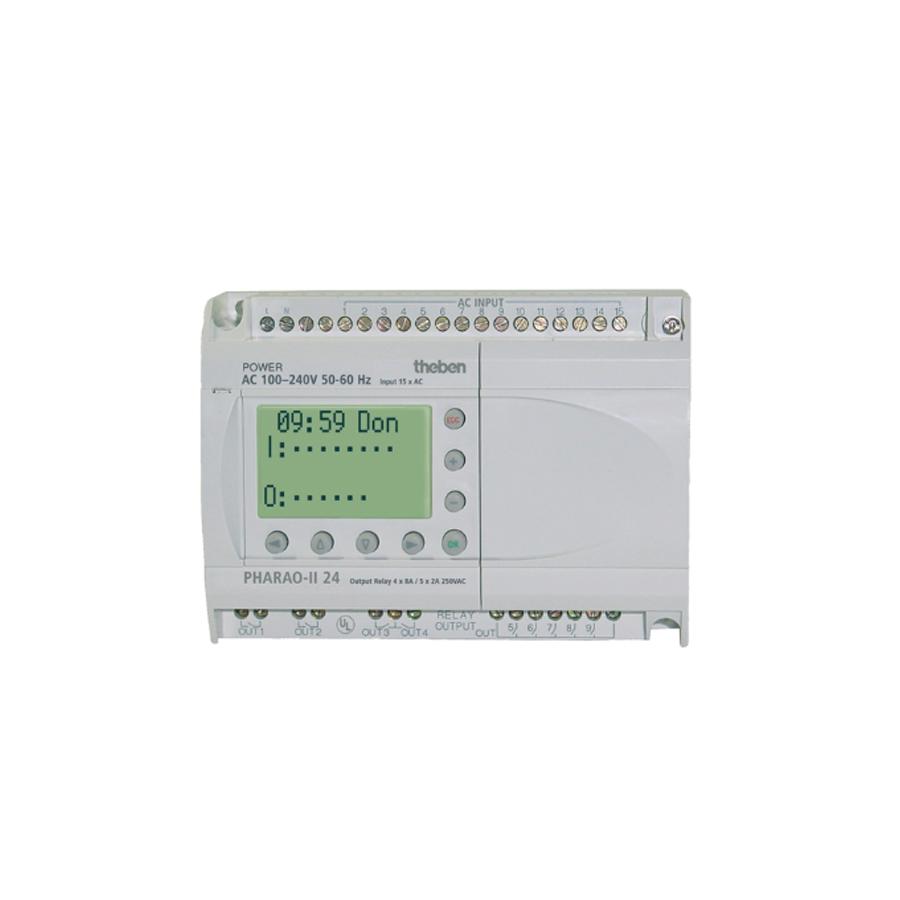

Controller THEBEN PHARAO-II 24 (AC)

- Small control unit for house automation and industry.

- Operating voltage 100-240 VAC.

- 15 digital inputs, e.g. for keys, brightness and temperature switches.

- 9 relay outputs.

- Programming directly on device via eight buttons without interface cable.

- Display back light with operator guidance in clear text.

- Input and output switching status display.

- Lifespan of relay contacts is 100,000 switching cycles at nominal current.

- Assignment of programmed functions on front keys.

- Internal EEPROM memory for max. 200 function blocks (5,000 bytes).

- Optional plug-in EEPROM for program transfer or dual programming of internal and plugged-in EEPROM.

- 3-level password protection.

- Realtime year clock with 1,000 switching times.

- Graphical programming software for Windows 95/98/NT/2000/ME/XP with detailed online Help documentation.

- Remote control/remote monitoring possible via modem/GSM modem.

- Transmission of SMS, email or fax.

MUA NGAY

Giao hàng toàn quốc

Giao hàng trong vòng 5h

Đổi trả hàng trong vòng 1 tháng với bất cứ lý do

Thanh toán khi nhận hàng (COD) hoặc chuyển khoản

Tư vấn: 0903 189 128

Specifications

Model	PHARAO-II 24 (AC)
Operating voltage	100 – 240 VAC
Frequency	50 – 60 Hz
Number of inputs	15
Number of outputs	9
Stand-by consumption	1,3 W
Width	7 modules
Installation type	DIN rail
Type of connection	NO Contact
Switching capacity	4 x 8 A (250 V AC, cos f = 1), inductive load max. 373 VA, 5 x 2 A (250 VAC, cos f = 1), inductive load max. 93 VA
Power reserve	20 days
Time accuracy at 25 °C	≤ ± 5s/day (quartz)
Input frequency	20Hz
Suitable for SELV	No
Ambient temperature	-25°C … +55°C
Stock temperature	-30°C … +70°C
Protection class	II according to EN 60 730-1
Type of protection	IP20

- Hãng sản xuất THEBEN của Đức.
