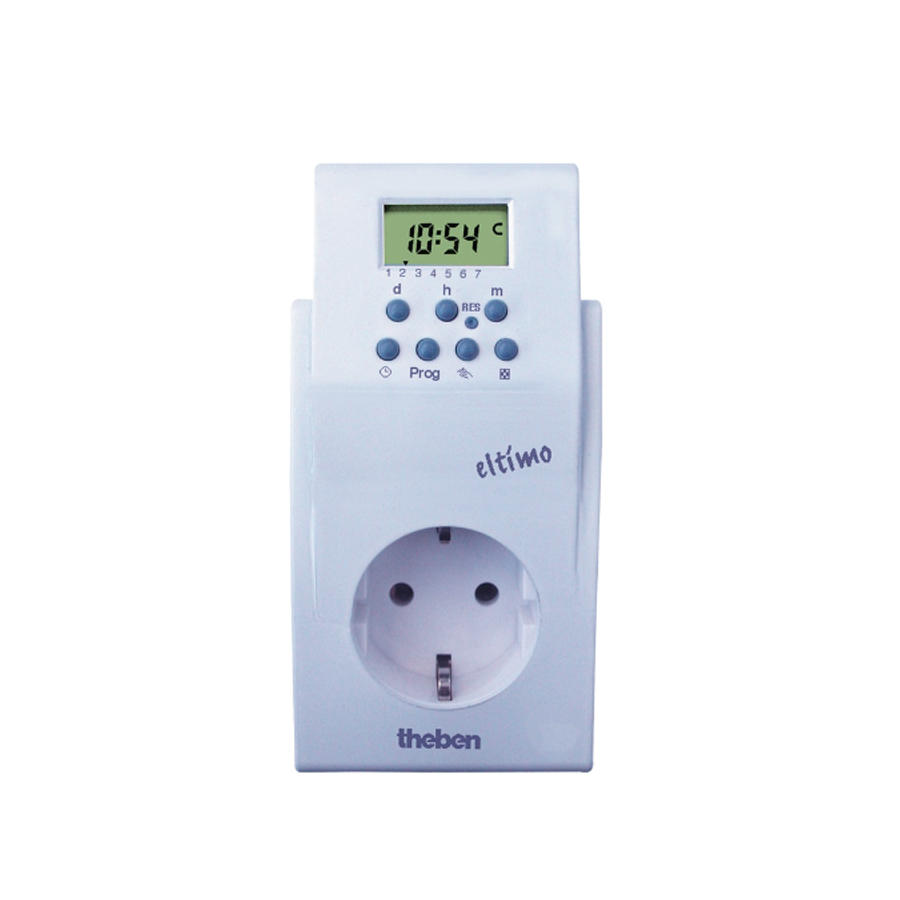

Model | theben-eltimo 020 S |
Operating voltage | 230 VAC |
Frequency | 50 Hz |
Installation type | Plug-in |
Type of contact | NO contact |
Opening width | < 3 mm (µ) |
Program | Weekly program |
Number of channels | 1 |
Number of memory locations | 36 |
Power reserve | 20 days |
Switching capacity at 250 V AC, cos φ =1 | 16A |
Switching capacity at 250 V AC, cos φ =0,6 | 2A |
Incandescent/halogen lamp load 230 V | 1000W |
Shortest switching times | 1 min |
Time accuracy at 25°C | ≤ ± 1 s/day (quartz) |
Time basis | Quartz |
Stand-by consumption | ~0,8W |
Type of connection | Plug-in |
Type of protection | IP20 |
Protection class | II for housing, I for plug system as per EN 62 730-1 |
Ambient temperature | -10°C … +40°C |
- Hãng sản xuất THEBEN của Đức.
