ELPA 8

Công tắc hẹn giờ Staircase

Giá bán: 726.000^đ

Tính năng chính:

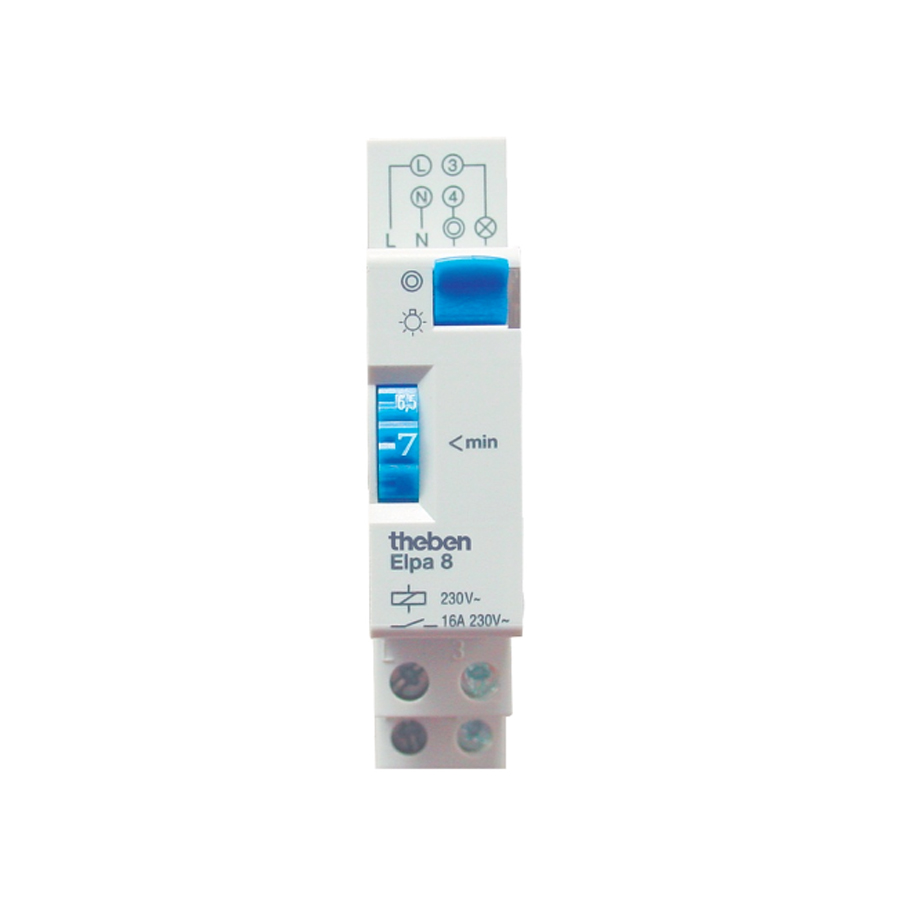

Công tắc hẹn giờ Staircase THEBEN ELPA 8

- Staircase time switch, electro-mechcanical.

- 4 conductor with floor lighting connection.

- 3 conductor without floor lighting (no longer permitted for new systems).

- Retriggerable.

- No closed-circuit current consumption.

- Toggle switch for permanent light ON.

- Reliable due to synchronous motor drive.

- Simplest possible time setting and direct delay time readout on absolute scale.

- Precision mechanics and therefore exact switching period.

- Very low sensitivity to interference.

MUA NGAY

Giao hàng toàn quốc

Giao hàng trong vòng 5h

Đổi trả hàng trong vòng 1 tháng với bất cứ lý do

Thanh toán khi nhận hàng (COD) hoặc chuyển khoản

Tư vấn: 0903 189 128

Specifications

Model	ELPA 8
Operating voltage	230 VAC
Frequency	50 Hz
Width	1 modules
Installation type	DIN rail
Stand-by consumption	~0W
Capacity loss max.	0,7W
Glow lamp load	50 mA
Setting range time	1 – 7 min
Type of connection	3-/4-conductors
3/4-way conductors	Yes
Secondary switching	After 30s
Type of contact	NO contact
Opening width	> 3 mm
Switching output	Not Potential-free (230V)
Incandescent/halogen lamp load	2300 W
Fluorescent lamp load (conventional) lead-lag circuit	2300 VA
Fluorescent lamp load (conventional) parallel-corrected	1300 VA 70 µF
Energy saving lamp	150W
LED lamp < 2 W	30W
LED lamp 2-8 W	300W
LED lamp > 8 W	300W
Fluorescent lamp load (electronic ballast)	600 VA
Fluorescent lamp load (conventional) series-corrected	2300 VA
Switching capacity	6 AX (at 230 V AC, cos φ = 0.3), 16 A (at 230 V AC, cos φ = 1)
Switch for permanent light	Toggle switch
Test approval	VDE
Housing and insulation material	High-temperature resistant, self-extinguishing thermoplastic
Ambient temperature	-10°C … +50°C
Type of protection	IP20
Protection class	II
