Model sản phẩm:

GSK-SP6920PTZ-12X-IPC

2MP-PTZ-IPC
Giá bán:
Tính năng chính:



. Cảm biến hình ảnh: 1/2.9'' INCH 2.0 Megapixel

. Đèn Led hồng ngoại: Không

. Hồng ngoại: Không

. Độ nhạy sáng: Không

. Ống kính: 5.1~62mm. Góc quan sát ngang: 59° ~ 5.2°

. Hỗ trợ: WDR, IPv4/IPv6, P2P, DDNS, ONVIF

. Tiêu chuẩn chống chịu môi trường / Va đập: IP66 / IK10

. Kích thước: (Ф198×H158)mm. Trọng lượng: 0.55Kg

. Nguồn cấp: AC24V±25% - 1500mA / PoE+(802.3at)

. Thích hợp lắp đặt trong nhà




MUA NGAY
Camera quan sát   Giao hàng toàn quốc
Camera quan sát   Giao hàng trong vòng 5h
Camera quan sát   Đổi trả hàng trong vòng 1 tháng với bất cứ lý do
Camera quan sát   Thanh toán khi nhận hàng (COD) hoặc chuyển khoản
Camera quan sát   Tư vấn: 0903 189 128

Camera

Image Sensor

1/2.7” CMOS

Effective Pixels

1920(H) x 1080(V), 2 Megapixels

RAM/ROM

256M/128M

Scanning System

Progressive

Electronic Shutter Speed

1/1s~1/300,000s

Minimum Illumination

Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6

S/N Ratio

More than 55dB

IR Distance

N/A

IR On/Off Control

N/A

IR LEDs

N/A

Lens

Focal Length

5.1mm~61.2mm

Max. Aperture

F1.6 ~ F3.0

Angle of View

H: 59.3° ~ 5.2°

Optical Zoom

12x

Focus Control

Auto/Manual

Close Focus Distance

100mm~ 1000mm

PTZ

Pan/Tilt Range

Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°,auto flip 180°

Manual Control Speed

Pan: 0.1° ~300° /s; Tilt: 0.1° ~120° /s

Preset Speed

Pan: 300° /s; Tilt: 200° /s

Presets

300

PTZ Mode

5 Pattern, 8 Tour, Auto Pan ,Auto Scan

Speed Setup

Human-oriented focal Length/ speed adaptation

Power up Action

Auto restore to previous PTZ and lens status after

power failure

Idle Motion

Activate Preset/ Scan/ Tour/ Pattern if there is no

command in the specified period

Protocol

Support

Intelligence

Auto Tracking

N/A

IVS

Tripwire, Intrusion,Abandoned/Missing, Face Detection

Video

Compression

H.264+/H.264 / MJPEG

Streaming Capability

3 Streams

Resolution

1080P(1920×1080)/720P(1280×720) /D1(704×576/ 704×480)/CIF(352×288/352×240)

Frame Rate

Main stream

1080P/D1(1 ~ 25/30fps), 720P(1 ~ 50/60fps)

Sub stream1

D1/CIF(1 ~ 25/30fps)

Sub stream2

720P/D1/CIF (1 ~ 25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264+/H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps

Day/Night

Auto(ICR) / Color / B/W

Backlight Compensation

BLC / HLC / WDR(120dB)

White Balance

Auto,ATW,Indoor,Outdoor,Manual

Gain Control

Auto / Manual

Noise Reduction

Ultra DNR (2D/3D)

Motion Detetion

Support

Region of Interest

Support

Electronic Image

Stabilization (EIS)

N/A

Defog

Support

Digital Zoom

16x

Flip

180°

Privacy Masking

Up to 24 areas

Audio

Compression

G.711a/G.711mu/PCM

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP,

ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP,

DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x

Interoperability

ONVIF, PSIA, CGI

Streaming Method

Unicast / Multicast

Max. User Access

20 users

Edge Storage

NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 128GB

Web Viewer

IE, Chrome, Firefox

Management Software

CMS Software, APP Mobile Software, Cloud P2P

Smart Phone

IOS, Android

Interface

Video Interface

N/A

Audio Interface

1/1

RS485

N/A

Alarm

2/1

Electrical

Power Supply

AC24V/1.5A(±10%), PoE+(802.3at)

Power Consumption

12W

Environmental

Operating Conditions

-30°C ~ 60°C (-22°F ~ +140°F) / Less than 90% RH

Ingress Protection

IP66

Vandal Resistance

IK10

Construction

Casing

Metal

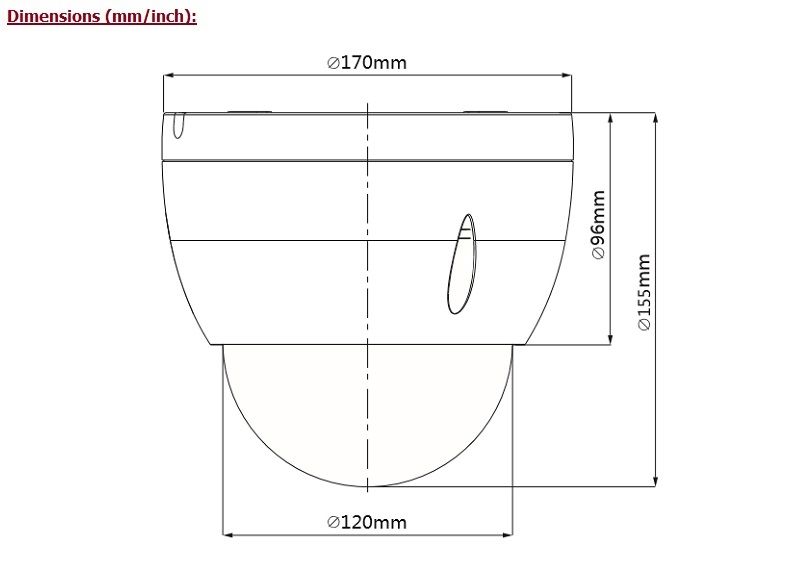

Dimensions

Φ170(mm)×155(mm)

Net Weight

1.8kg(3.97lb)
