PR-10BU

Photoelectric Beam Sensor

Giá bán: 4.345.000^đ

Tính năng chính:

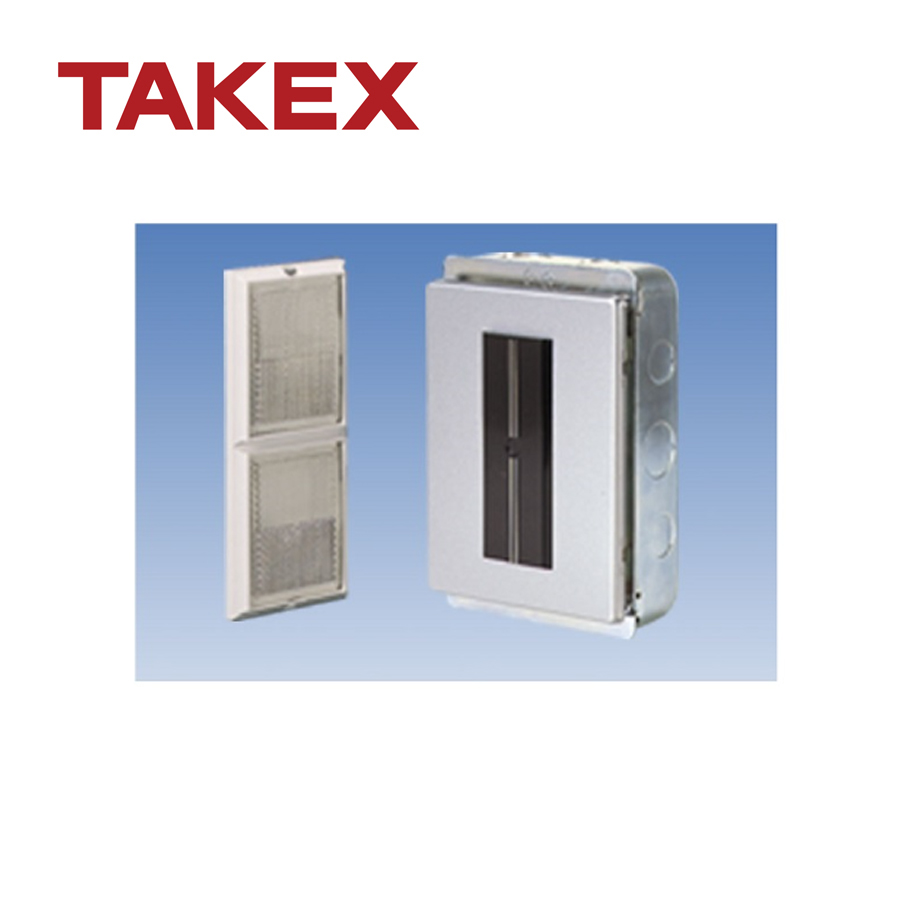

Photoelectric Beam Sensor TAKEX PR-10BU

- The popular PR-10B reflector beam is now available in a white enclosure for a more unobtrusive installation.

- It is designed for applications where a "beam break" sensor is desirable but running wire to both ends is impractical.

- Suggested applications include entrances and exits, corridors, specific area and as an annunciation device.

Feature

- Rotary Optical System: Beam direction can be rotated a full 180 degrees for installation adaptation.

- Easy Maintenance: Operation LED(red) and SA(Self-Adjustment) mechanism yield quick operation check and ensure good beam alignment.

- High Sensitivity To Reflected Beam: Receiver incorporates a differential calculus detection system which precisely 'locks on' to the incoming reflected beam.

- Easy Installation: Wire is run to the transmitter only. The reflector allows up to a 40 degrees (+/-20 degrees) angle varience in beam reception / reflection which makes installation very 'forgiving' and can aid in situations where it is neary impossible for the beam to reflect off the mirror 'dead center'.

- Others

+ Alien-light rejection circuit.

+ 'L' bracket available for reflector (option).

- Flush Mount Type Available: Inconspicuous flush mount PR-10BU is available.

MUA NGAY

Giao hàng toàn quốc

Giao hàng trong vòng 5h

Đổi trả hàng trong vòng 1 tháng với bất cứ lý do

Thanh toán khi nhận hàng (COD) hoặc chuyển khoản

Tư vấn: 0903 189 128

Thông số kỹ thuật

Prouduct name	Photoelectric beam sensor
Model	PR10-BU
Protection distance	33' (10m)
Infrared beam	RED Wave length: 9400Å, Modulation: 500Hz
Response time	50-100 msec. or more
Alarm signal	Dry contactrelay output 1b (N/C) Contact capacity: 30V (AC/DC), 0.5A
Supply voltage	10.5VDC to 15VDC (non-polarity)
Power consumption	30mA (at 12VDC)
Ambient temperature range	-13F to +131F (-25C to +55C)
Mounting position	Indoor (entrance, corridor)
Wiring	Lead wire
Weight	16.8 oz (480g)
Appearance	Duralumin plate
