PR-5B(E)

Photoelectric Beam Sensor

Giá bán: 1.427.000^đ

Tính năng chính:

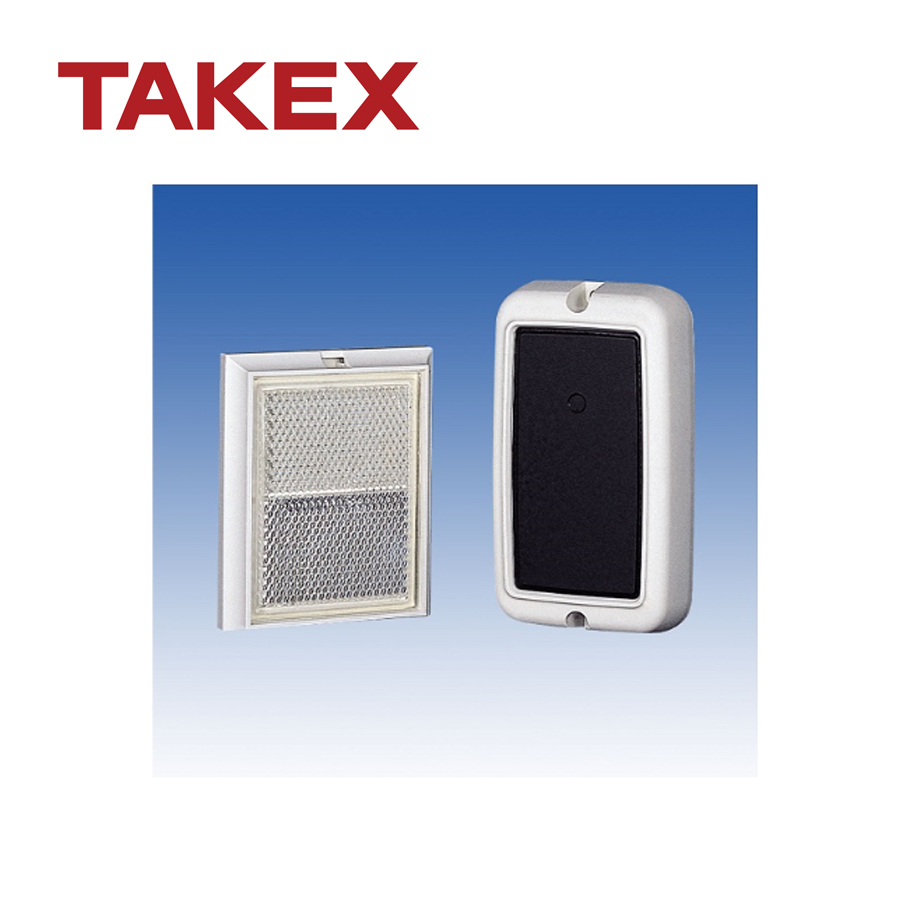

Photoelectric Beam Sensor TAKEX PR-5B(E)

- Reflector Beam For Short Distance Protection

+ The PR-5B is designed for applications where a“beam break” sensor is desirable but running wire to both ends is impractical.

+ Suggested applications include entrances and exits, corridors, staircases and as an annunciation device.

- Compact Size And Smart Design

+ Super slim, pocket calculator sized unit is esigned for unobtrusive installation.

+ Its new white enclosure blends well with virtually all environments.

- Excellent External Light Immunity: Our original design has been further enhanced by the addition of a new special filter which effectively eliminates interference from visible light rays.

- Easy Installation: The reflector allows up to 30 degrees(+/-15 degrees) angle variance in beam reception/reflection which makes installation very“forgiving”and can aid in situations where it is nearly impossible for the beam to reflect off the mirror“dead center”.

+ Simple terminal arrangement provides for easy installation.

+ Wide range of supply voltage, 10.5V to 26V DC (non-polarity)

+ Flush mount plates available for both sensor and reflector (option), BP-5B, BP-5D, BP-5C

+ “L”brackets available for both sensor and reflector (option), BL-5

MUA NGAY

Giao hàng toàn quốc

Giao hàng trong vòng 5h

Đổi trả hàng trong vòng 1 tháng với bất cứ lý do

Thanh toán khi nhận hàng (COD) hoặc chuyển khoản

Tư vấn: 0903 189 128

Thông số kỹ thuật

Model	PR-5B
Protected distance	16.5' (5m) or less
Light source	Infrared light emitting diode
Response time	50msec. or more
Alarm signal	Dry contact relay output S.P.D.T. form C. Contact capacity : AC/DC30V・0.5A
Supply voltage	10.5－26V DC (Non-polarity)
Power consumption	37mA (at 12V DC)
Ambient temperature range	－20C to ＋50C (－4F to ＋122F)
Mounting positions	Indoor-entrance, exit, window, passageway
Weight (excluding accessories)	Sensor : 90g (3.2 oz) Reflector : 50g (1.8 oz)
Appearance	ABS resin (white)
