TAKEX PR-1B(E)

Photoelectric Beam Sensor

Giá bán: 1.138.000^đ

Tính năng chính:

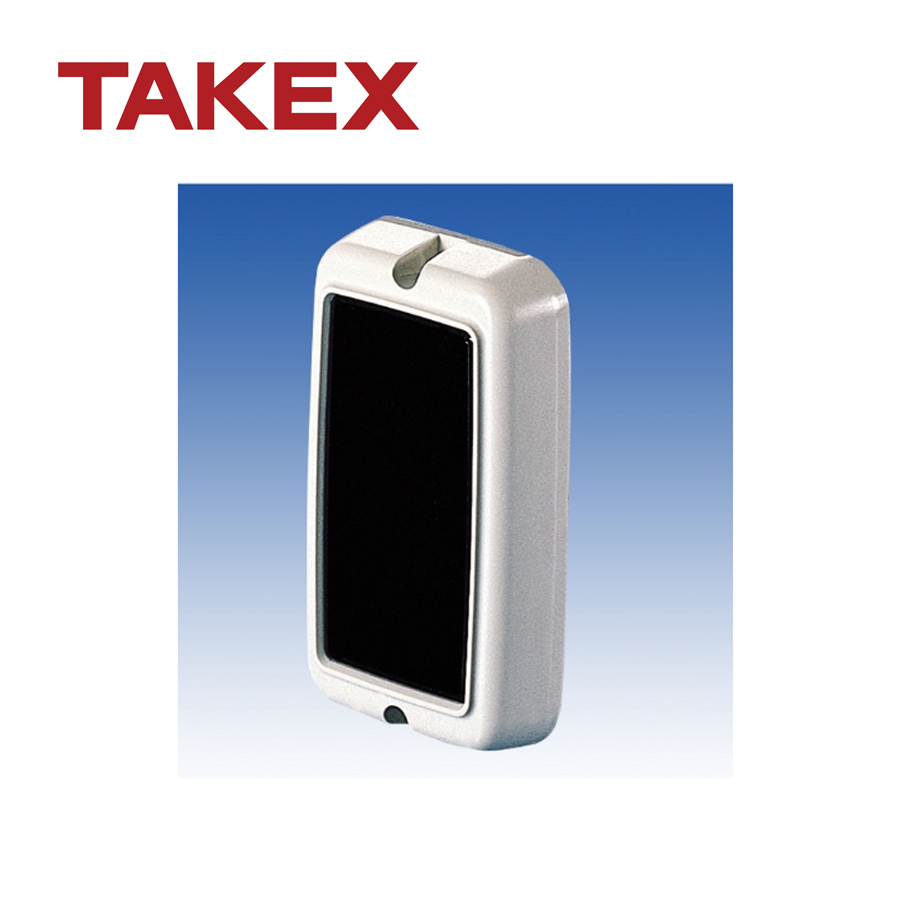

Photoelectric Beam Sensor TAKEX PR-1B(E)

- Without Reflector: Direct reflection system eliminates reflector unit that is necessary for current reflection type beam sensor.

- Convenient Sensltivlty Adjustment: Sensitivity is adjustable to fit for installation sites. (Sensitivity is set at factory so that the sensor can detect human body 1m away.).

- Wide Application: PR-1B is usable in various applications where the detection of motionless objects is required.

- Easy Installation: Both a transmitter and a receiver are incorporated in one unit. This reduces installation time.

+ Slim and compact (23.5mm thickness of unit).

+ Terminal wiring.

+ Flush mount is availabe with optional attachment BP-5B/BP-5D

+ Application further expands with optional L fitting BL-5.

MUA NGAY

Giao hàng toàn quốc

Giao hàng trong vòng 5h

Đổi trả hàng trong vòng 1 tháng với bất cứ lý do

Thanh toán khi nhận hàng (COD) hoặc chuyển khoản

Tư vấn: 0903 189 128

Thông số kỹ thuật

Product name	Photoelectric beam sensor
Model	PR-1B (E)
Detection system	Near infrared (Direct reflective detection of motionless objects)
Protection distance	1m(3.3')or less
Response time	100msec. or more
Alarm output	Dry contact relay outoput: 1c Contact activation: detection time + off delay(approx.0.5sec.) Contact capacity: 30V AC/DC,0.5A or less
Supply voltage	10.5V to 22V DC(non-polarity)
Current consumption	60mA or kess(at 12VDC)
Ambient temperature range	-20C to +50C　(-4F to +122F)
Mounting position	Indoor
Weight	Approx.75g(2.6oz)
Appearance	ABS resin(off-white)
