PB-4RTNS(E)

Photoelectric Twin Beam Sensor

Giá bán: 2.530.000^đ

Tính năng chính:

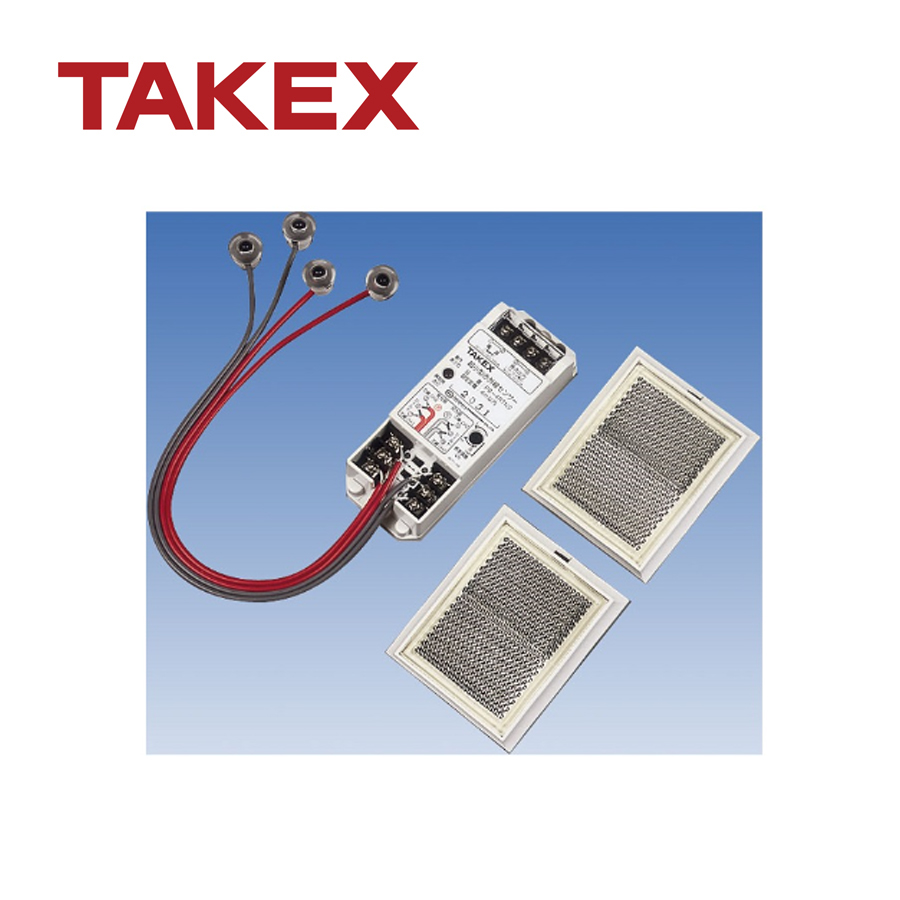

Photoelectric Twin Beam Sensor TAKEX PB-4RTNS(E)

PB-4RTNS(E) Twin beam reflective type 13ft (4m).

- Description

+ Miniaturized Photoelectric Beam Sensor is suitable for use inconspicuously in a wide range of applications.

(for CD/ATM machine, motor-driven shutter, window or alley.)

- Miniaturized Control Box

+ Miniaturized control box [W:1.77'(45mm) × H:4.72'(120mm) × D:1.14'(29mm)] does not use much space for installation.

- Easy Installation

+ For sensor head, make a preliminary hole and push it only to be installed.

- Built-In Sensitivity Control

+ Adjustable to the optimal sensitivity as the installation site demands.

- Sensor Cord Can Be Cut To Length

+ Both of transmitter cord and receiver cord can be cut as the installation site requires.

+ No need to bundle the extra cord.

MUA NGAY

Giao hàng toàn quốc

Giao hàng trong vòng 5h

Đổi trả hàng trong vòng 1 tháng với bất cứ lý do

Thanh toán khi nhận hàng (COD) hoặc chuyển khoản

Tư vấn: 0903 189 128

Model	PB-4RNS(E)
Detection system	Near infrared reflective type
Protection distance	13ft. (4m) or less
Supply voltage	DC10V to DC30V (Non-polarity)
Current consumption	45mA or less
Alarm output	Dry contact relay: 30V (AC/DC) 0.3A N/O, N/C selectable Contact action: Interruption time＋Delay time (approx. 1 sec.)
Response time	Detect 100msec. or more of beam interruption
Operation LED	Lights Red during detection (beam is interrupted)
Ambient temperature range	-13F to +131F (-25C to +55C) (without condensation or frozen)
Appearance	Sensor: PC resin (clear) Control box: ABS resin (white)
Weight	Sensor: 4.2oz (120g) × 2 Control box: 3.3oz (95g)

- Xuất xứ: Nhật Bản.
